Quantum Spatial Canada Supports Disaster Preparedness on Vancouver Island Through Lidar Survey Covering 9000 Square Kilometers

Located off the Pacific Coast of British Columbia, Vancouver Island is home to just under 900,000 people, as well as the province’s capital, Victoria. The island’s natural beauty and sandy beaches make it an appealing resort destination, including Tofino, Canada’s “unofficial surfing capital.” Vancouver Island also holds other economic significance, as its ports and harbors play key infrastructural roles in the region’s shipping and mining industries.

Vancouver Island’s location and climate make it prone to natural disasters like flooding, earthquakes, and tsunamis. Because of the island’s growing population and economic importance, the Ministry of Forests, Lands, Natural Resource Operations and Rural Development in British Columbia invests significant resources in natural disaster preparedness. Recently, GeoBC, the provincial agency responsible for business solutions built from geographic information, worked with Quantum Spatial Canada to develop geospatial resources to better understand the potential impact of major flooding events. GeoBC is responsible for the creation and management of geospatial information and products for British Columbia, and its accurate modeling has a direct impact on the province’s disaster preparation.

LiDAR cross section displays a view of a forest on Drake Island, BC, colored by point laser echo

GeoBC hired Quantum Spatial to conduct a comprehensive Lidar and imagery survey of Vancouver Island — an area of approximately 9,000 buffered square kilometers — with the goal of identifying coastline changes and creating topographical Lidar resources to inform the region’s development and maintenance work. The project was also supported by Emergency Management BC (EMBC) and the federal government through the National Disaster Mitigation Program (NDMP). By understanding coastline erosion and its effects on potential flooding scenarios, local government organizations are able to more effectively plan construction and maintenance to roads and bridges. Topographical Lidar enables the government of British Columbia to understand how a disaster event could affect the coastline: where flood water will go, what areas are at risk, and how to mitigate those risks.

Supporting public safety

Prior to Quantum Spatial’s survey from Fall 2018–Fall 2019, the most recent survey work took place in 2014, as imagery was collected with a ground sample distance (GSD) of 20cm. Quantum Spatial was brought in to deliver Lidar and imagery to chart incremental coastline changes; this information is crucial for developing tools like overland flow modeling, flood plain mapping, and dike break scenarios—key elements of the region’s disaster preparedness strategy.

Quantum Spatial’s extensive portfolio of large-scale topographic data projects, including support of the U.S. Geological Survey (USGS) 3D Elevation Program (3DEP), made the company an exceptional candidate for the comprehensive survey of Vancouver Island. The sheer scope of the project required multiple planes and pilots, subcontracted acquisition teams, and deployment in a variety of weather conditions over multiple months. Quantum Spatial’s expertise in synthesizing datasets across large-scale collection processes would play a significant role in ensuring the success of the project.

The team completed the acquisition in October 2019. The topographical Lidar required high quality levels with an average of 8 points per square meter—the highest level for an aerial-acquired program. Acquisition was conducted using a RIEGL VQ-1560i sensor, uniquely enabling pilots to fly higher and faster while still collecting dense data, bringing exceptional efficiencies during the extensive acquisition process. Quantum Spatial also conducted ground surveys spanning 7,250 survey kilometers, providing the data processing team with QA control check points to correct and align the Lidar data collected from multiple flights.

Exceptional results

The acquired Lidar data exceeded even the demanding expectations of the project specifications, with the average first-return density of the data was 19.19 points per square meter. This exceptional data quality provides a direct benefit to the models derived by GeoBC for disaster preparedness: each additional point per square meter improves the overall accuracy of the derivative products, for example, heightening the utility and effectiveness of floodplain hazard mapping.

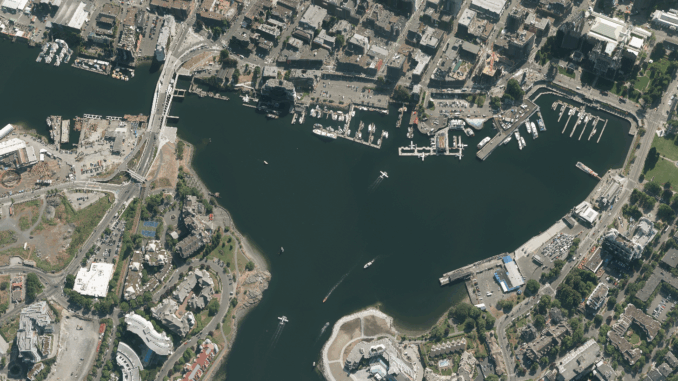

LiDAR point cloud displays a view of the harbor in Victoria, BC colored by point

Following data acquisition, Quantum Spatial used multiple manual and automated techniques to process the data into the deliverable geospatial products. The processing tasks included GPS control computations, kinematic corrections, smoothed best estimate trajectory calculations, and Lidar point classification for the collected data from eight planes; these tasks drew on Quantum Spatial’s processing capability and experience in creating seamless datasets from multiple collection methods.

Quantum Spatial’s expertise in cleaning and processing large, diverse datasets paid off, as GeoBC was particularly satisfied with the accuracy and quality level of the Lidar data and associated deliverables.

The end products included a spectral encoded Lidar point cloud, stereo models, a digital elevation model, and an orthomosaic for seamless imagery coverage. In each case, the quality level of the original Lidar data made a remarkable difference, creating exceptional resources for the province’s natural disaster preparations. The highly accurate deliverables also offered an additional business benefit to GeoBC, as the topographical Lidar data can now be shared with commercial and public sector stakeholders in the region. These resources are particularly valuable to both municipal and commercial planners and developers, who use the data to inform decisions surrounding where to safely build new projects and infrastructure.

LiDAR cross section displays a view of the British Columbia Parliament Buildings, colored by point classification

The data products from Quantum Spatial for GeoBC’s Vancouver Island project will provide tangible benefits to the island’s residents and visitors. Overland flow modeling and dike break scenarios, enhanced by the impressive first-return density of Quantum Spatial’s data, will enable the regional government to prepare effectively for natural disasters and ensure that construction projects will take place on safe ground.

The topographical Lidar assets developed by Quantum Spatial will also serve to protect the 50 First Nations of Vancouver Island, which are spread out among the three tribal regions of Coast Salish, Nuu-chah-nulth, and Kwakwaka’wakw. The First Nations regularly participate in tsunami and flood modelling projects for their respective tribal regions, demonstrating their continued stewardship of Vancouver Island.
